Description
PC housing & PC diffuser
3xCCT by DIP switch model available
Microwave sensor model available
Emergency kit model available
Color: Black, White
09O

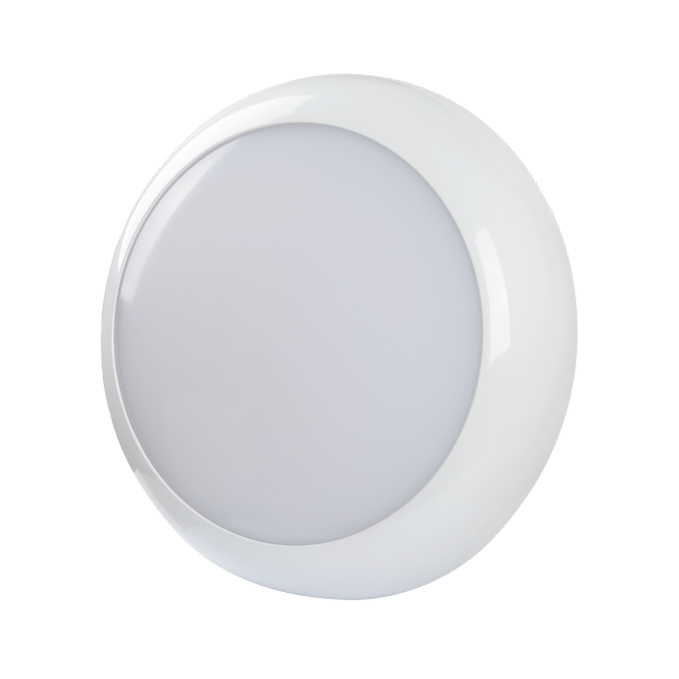

This versatile LED bulkhead has multi-function versions, all certification approved, fitting different projects needs.
PC housing & PC diffuser

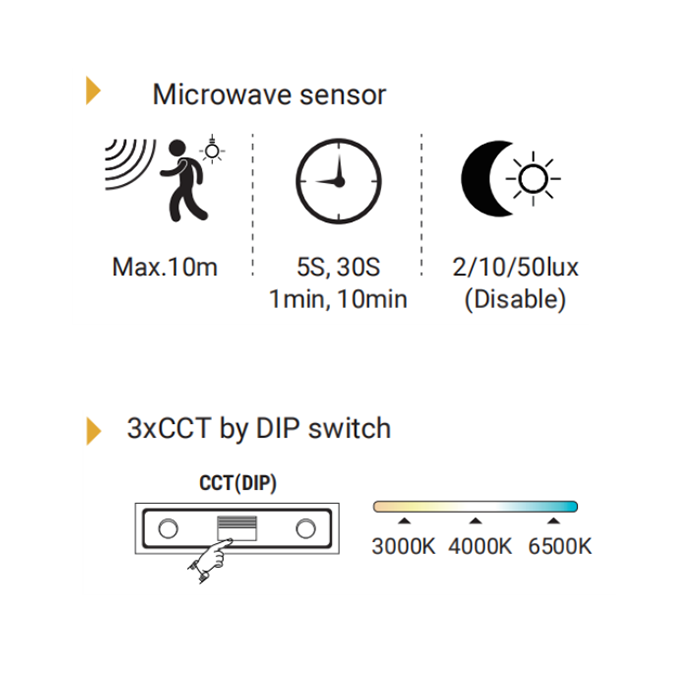

3xCCT by DIP switch model available
Microwave sensor model available
Emergency kit model available
Color: Black, White
| Item | Wattage | Lumen | Voltage | IP | Beam Angle | Dimension |
| UL09O-300-12 | 12W | 1200lm | AC220-240V | IP65 | 120° | φ300x93mm |
| UL09O-300-16 | 16W | 1600lm | AC220-240V | IP65 | 120° | φ300x93mm |
| UL09O-300-12-S | 12W | 1200lm | AC220-240V | IP65 | 120° | φ300x93mm |
| UL09O-300-16-S | 16W | 1600lm | AC220-240V | IP65 | 120° | φ300x93mm |
| UL09O-300-13-EM | 13W | 1200lm | AC220-240V | IP65 | 120° | φ300x93mm |
| UL09O-300-17-EM | 17W | 1600lm | AC220-240V | IP65 | 120° | φ300x93mm |
| UL09O-300-13-S-EM | 13W | 1200lm | AC220-240V | IP65 | 120° | φ300x93mm |
| UL09O-300-17-S-EM | 17W | 1600lm | AC220-240V | IP65 | 120° | φ300x93mm |
| UL09O-300-12-TC | 12W | 1200lm | AC220-240V | IP65 | 120° | φ300x93mm |
| UL09O-300-16-TC | 16W | 1600lm | AC220-240V | IP65 | 120° | φ300x93mm |
| UL09O-300-12-TC-S | 12W | 1200lm | AC220-240V | IP65 | 120° | φ300x93mm |
| UL09O-300-16-TC-S | 16W | 1600lm | AC220-240V | IP65 | 120° | φ300x93mm |
| UL09O-300-13-TC-EM | 13W | 1200lm | AC220-240V | IP65 | 120° | φ300x93mm |
| UL09O-300-17-TC-EM | 17W | 1600lm | AC220-240V | IP65 | 120° | φ300x93mm |
| UL09O-300-13-TC-S-EM | 13W | 1200lm | AC220-240V | IP65 | 120° | φ300x93mm |
| UL09O-300-17-TC-S-EM | 17W | 1600lm | AC220-240V | IP65 | 120° | φ300x93mm |
This LED bulkhead has great texture, easy install with backside connection box and fast connector.
